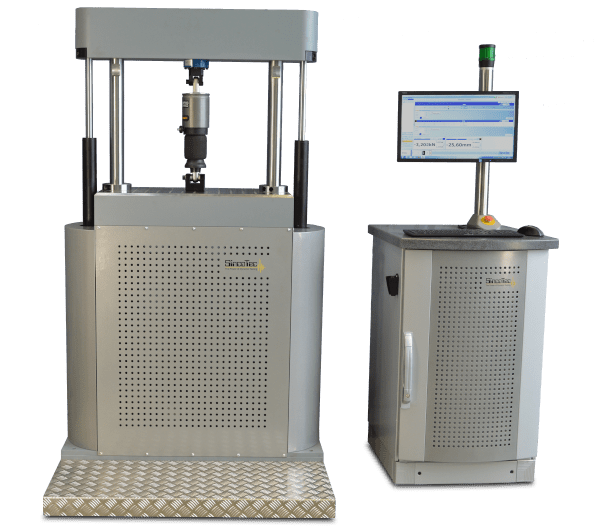

Universal hydraulic test system
POWER FLOW
Your universal test system for servo hydraulically driven component tests
Highlights
- Testing with large strokes
- Also usable for non-linear systems
- Components with high damping
- User-defined testing frequency
Uses
- Almost any component
- Dampers
- Elastomers
- Testing at low frequency possible
POWER FLOW's capabilities
The POWER FLOW is the ideal universal testing machine for non-linear systems or components with high damping. Using suitable testing fixtures, tension-compression, bending, torsion, and internal pressure tests can be performed. Hydraulic principles allow you to freely choose the test frequency.
Your desired test fixtures, mounted on a suitable servohydraulic testing cylinder, can be combined with our flexible and intuitive operating software CoPilot.
Servo hydraulic
Tension-Compression
Bending
Torsion
Internal Pressure
Your Advantages
Product Variations
Your Advantages
- Universally applicable
- Variable amplitudes
- Large strokes
- Test frequency freely selectable up to max. 500 Hz
- Multi-axial loads possible
- Also developed for the testing of non-linear systems
- User-defined signal types
- Testing with high acceleration or adhering to specific speeds using only one test system
- Static and dynamic trials
- Usage of different load frames
- Simple and precise test controlling with SincoTec’s TestPilot control unit
Product Variations
POWER FLOW comes in four different variants:
- Universal test system POWER FLOWÂ up to 400 kN
- Universal test system with high frequencies POWER FLOW high frequency up to max. 500 Hz
- 2-axial test system (Tension-Compression, Torsion) POWER FLOW axial + torsion up to 125 kN/4,000 Nm
- Test system for internal pressure testing POWER FLOW high impression up to 1,500 bar
- Universal test system POWER FLOWÂ up to 400 kN
Product overview
Typical Components:
- Spring and damper elements
- Drive shaft
- Chassis components
- Chain tightening systems
- Clutch systems
Industries:
- Automotive
- Commercial vehicles
- Component suppliers
- Railways
- Shipping
- Medical technology
- Green energy
- Machinery & tools
- Aerospace & space flight
- Materials
CoPilot Software
Recommended software options:
- FlightReport
Accessories:
- Standard test fixtures
- Customized test fixtures
- Protective casings
- Temperature control
- Environmental simulations
- Measurement instrumentation
- Hydraulic connections
- Hydraulic hoses
- Servo valves
- Cylinder accessories
- Hydraulic units
- Sound insulation
